Basic Info.
Model NO.
TS-PEC-002- 16A
Material
PC+GF10%
Connector
Type 2 Plug
Power
3.5kw
Input Frequency
50Hz/60Hz
Output Current
16A
Applicable Scene
Indoor or Outdoor
Installation Method
Portable, Plug and Play
Cable Length
5m or Negotiation
Protection Class
IP65
Power Plug
UK / Schuko / NEMA
Transport Package
Carton
Origin
China
HS Code
8504409999
Production Capacity
20000
Packaging & Delivery
Package Size
44.00cm * 44.00cm * 8.50cm
Package Gross Weight
3.000kg
Product Description
| Product Name | EU Standard AC 3.5KW 16A Ev Charger(UK / Schuko / Nema) |
| Model | TS-PEC-002 |
| Install | Portable, plug and play |
| Standard | SAE J1772, IEC 62752, EN 62196-2, IEC 61851-1 |
| Rated power | 220V |
| Rated Frequency | 50HZ/60HZ |

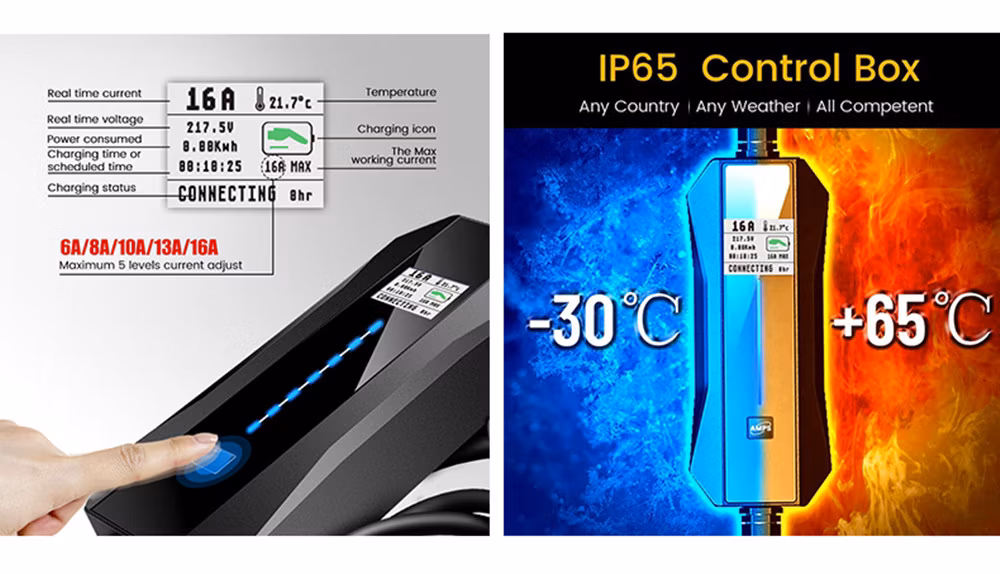

| Adjustable Current | 6A/8A/10A/13A/16A |
| Rated Power | 3.6kw |
| Cable Length | 5M or Negotiation |
| Operating Temperature | -30 ºC to +65 ºC |
| Storage Temperature | -40 ºC to +80 ºC |
| Protection Class | IP65 |
| Control Box Size | 255*109*55mm |
| Weight | 2.9KG |
